DIN17175 Alloy Pipes

DIN 17175 alloy steel pipe is just a big class,and it has many classifivations. We mainly produce DIN 17175 ST35.8, DIN 17175 ST45.8, and 10CrMo910 steel pipes. This alloy steel pipe is just a big class,and it has many classifivations.

We mainly produce DIN 17175 ST35.8,DIN 17175 ST45.8, and 10CrMo910 steel pipes.

Steel grade:

· DIN17175 St35.8

· DIN17175 St45.8

· 15Mo3

· 13CrMo44

· 10CrMo910

Chemical Compositions of DIN 17175 steel pipes (%)

Grade	C	Si	Mn	P	S	Cr	Mo
St35.8	≤0.17	0.10-0.35	0.40-0.80	≤0.040	≤0.040	/	/
St45.8	≤0.21	0.10-0.35	0.40-1.20	≤0.040	≤0.040	/	/
15Mo3	0.12-0.20	0.10-0.35	0.40-0.80	≤0.035	≤0.035	/	0.25-0.35
13CrMo44	0.10-0.18	0.10-0.35	0.40-0.70	≤0.035	≤0.035	0.70-1.10	0.46-0.65
10CrMo910	0.08-0.15	≤0.50	0.40-0.70	≤0.035	≤0.035	0.20-0.25	0.90-1.20

Mechanical Properties of DIN17175 steel pipe

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation(%)
St35.8	≥235	360-480	25
St45.8	≥255	410-530	21
15Mo3	≥275	450-600	20
13CrMo44	≥290	440-590	20
10CrMo910	≥280	450-600	18

Ordering Information

Orders for material under this specification should include the following, as required, to describe the desired material adequately:

Quantity	Feet, meters, or number of lengths
Name of material	Seamless Alloy Steel Pipe
Grade	STANDARD AND STEEL GRADE
Manufacture	Hot-finished or cold-drawn
Size using one of the following:
NPS and Schedule Number
Outside Diameter and Nominal Wall Thickness
Length	Specific or Random
End Finish

Size (mm) we can supply:

Hot-rolled: O.D.: 51-508; W.T.:7∼60; L: max 16000

Cold-drawn: O.D.: 10-50; W.T.:2∼10; L: max 16000

Hot-expanded：O.D.: 325-1020; W.T.:6∼50; L: max 12000 and other specifications in accordance with customer requirements.

Packing:

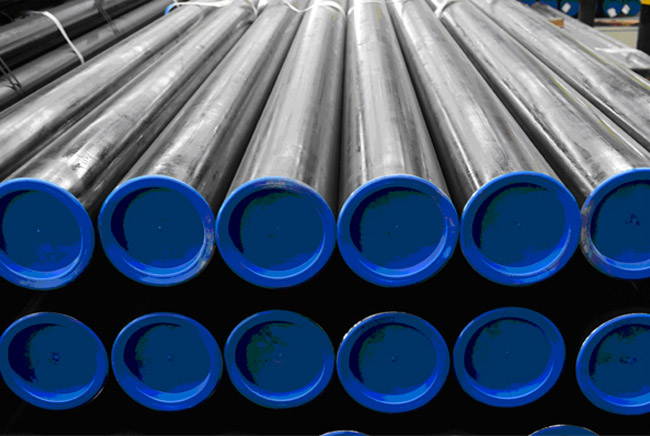

Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, Nodestructive Test, Hydrostatic Test.

Surface Treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting, Epoxy & Fbe Coating Painting as requested.
