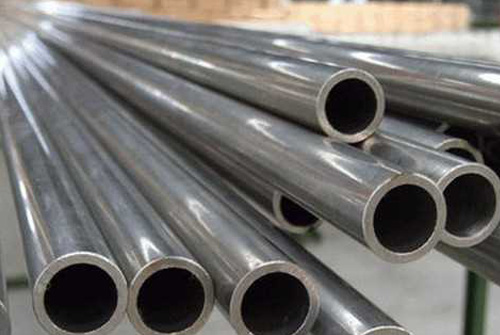

AISI 4130 Steel Pipe
AISI 4130 Steel Pipe
AISI 4130 Steel Pipe

AISI 4130 Steel Pipe

Next Inquire Now

AISI 4130 is a low alloy steel containing molybdenum and chromium as strengthening agents. The carbon content is nominally 0.30% and with this relatively low carbon content the alloy is excellent from the fusion weldability standpoint. The ASTM A519 4130alloy can be hardened by heat treatment.


We offers an extensive range of ASTM A519 4130seamless mechanical tubing is manufactured to meet your specific application requirements. Controlled modifications and adjustments are made to the tube making process for each order and take into consideration end use and all finishing operations (including heat treatment) that will be performed after you have received the tubing.


Composition Specifications of AISI 4130

Range

C

Si

Mn

P

S

Cr

Mo

Min

0.28

0.15

0.4

-

-

0.8

0.15

Max

0.33

0.35

0.6

0.035

0.04

1.1

0.25


Mechanical Specifications of AISI 4130

Condition

Hardened & Tempered

UTS

100KSI min

0.2% Proof Stress

80KSI min

Elongation

20% min

Reduction of Area

40% min


General Scope

This grade is similar to 4140 in scope which has a higher carbon level giving 4130 an advantage when it comes to weldability, this weldability is achieved at the cost of through section hardenability.


AISI 4130 steel is a low alloy steel that is used in structural designs that may be found in applications such as aircraft engine mounts or welded tubing. It is well known for its ease of welding and ability to harden in commercial applications. It is commonly referred to as chromium-molybdenum steel.


Ordering Information

Orders for material under this specification should include the following, as required, to describe the desired material adequately:

Quantity

Feet, meters, or number of lengths

Name of material

Seamless Alloy Steel Pipe

Grade

STANDARD AND STEEL GRADE

Manufacture

Hot-finished or cold-drawn

Size using one of the following:

NPS and Schedule Number

Outside Diameter and Nominal Wall Thickness

Length

Specific or Random

End Finish

Size (mm) we can supply:

Hot-rolled: O.D.: 51-508; W.T.:7∼60; L: max 16000

Cold-drawn: O.D.: 10-50; W.T.:2∼10; L: max 16000

Hot-expanded:O.D.: 325-1020; W.T.:6∼50; L: max 12000 and other specifications in accordance with customer requirements.

Packing:

Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, Nodestructive Test, Hydrostatic Test.

Surface Treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting, Epoxy & Fbe Coating Painting as requested.
